JF Bimetal Bushing

JF bimetallic composite bearings are made of high-quality low-carbon steel as the substrate, and the surface is sintered with copper alloys (CuPb10Sn10, CuPb6Sn6Zn3, CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) with low friction characteristics as the wear-resistant layer of the bearing. The copper alloy surface can be machined with various types of oil grooves, oil holes, oil cavities, etc. according to the needs of the operating conditions, to be suitable for situations where continuous or difficult refueling is not possible. The material can achieve good bonding strength and optimal load-bearing capacity through secondary sintering and secondary extrusion.

Golden statue picture Physical and mechanical properties Chemical composition Oil tank form

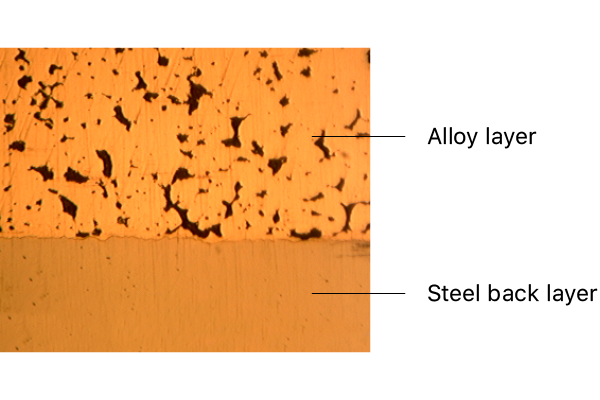

pic29-30-kx

Performance index		Data
Maximum bearing pressure P		140N/mm²
Maximum linear speed V	Grease	2.5m/s
Maximum linear speed V	Fluid lubrication	5m/s
Maximum PV value	Grease	2.8N/mm²· m/s
Maximum PV value	Fluid lubrication	10N/mm²· m/s
Coefficient of friction μ	Grease	0.06~0.12
Alloy hardness		80~120 HB

Performance index		Data
Matching axis	Hardness	≥53HRC
Matching axis	Roughness	Ra=0.16~0.63
Maximum service temperature	Grease	150℃
Maximum service temperature	Oil	250℃
Coefficient of friction		0.05~0.15
Thermal conductivity		47W/(m·k)
Thermal expansion coefficient		18×10^-6K^-1
