FB090 Wrapped Bronze Bushing

FB090 bronze rolled bearings are made of tin bronze alloy CuSn8, with diamond shaped oil holes rolled on the surface to store grease. They have good fatigue strength, load-bearing capacity, corrosion resistance, and wear resistance. Widely used in high load and low-speed applications such as agricultural machinery, construction machinery, and engineering machinery.

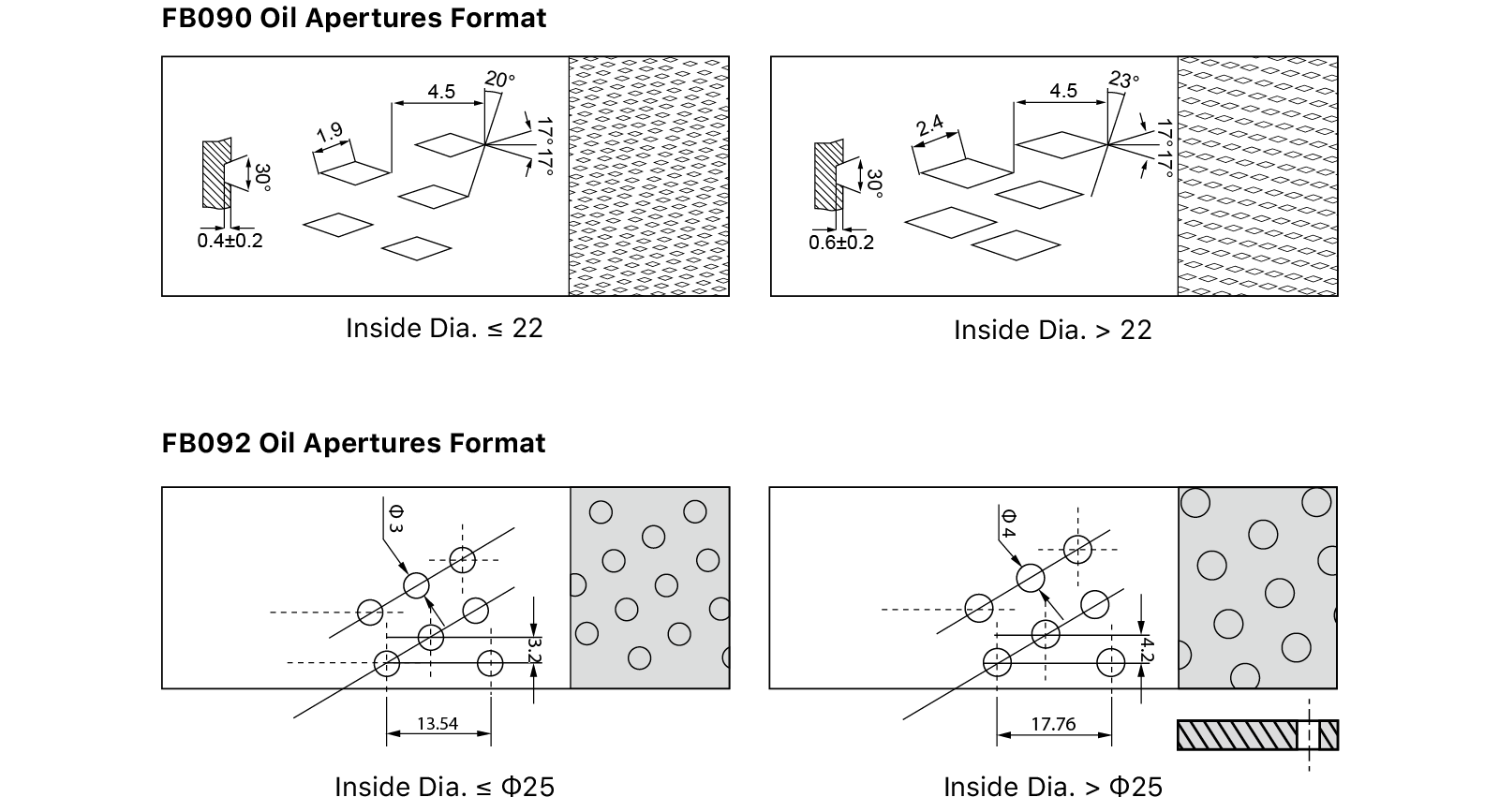

Metallographic image Physical and mechanical properties Chemical composition Oil hole through-hole type

FB090金相

Performance index		Data
Maximum dynamic load		100N/mm²
Maximum linear velocity	Grease	2m/s
Maximum PV value	Grease	2.8N/mm²·m/s
Tensile strength		460N/mm²
Yield strength		280N/mm²
Hardness		90~150HB

Performance index		Data
Matching axis	Hardness	≥50HRC
Matching axis	Roughness	0.4~1.0
Temperature		-40~+150℃
Coefficient of friction μ		0.06~0.15
Thermal conductivity		58W（m·k）
Thermal expansion coefficient		18.5×10^-6K^-1

FB090	Cu	Sn	P
FB090	Margin	7~9%	0.2~0.4%

FB090金相
